There have been a variety of flow visualization methods, among which texture-based ones [1] are gaining significant attention for the dense representation of a flow. Traditional geometry-based approaches such as arrow plots [2], streamlines [3], [4], [5], [6], [7], [8], pathlines [9], [10], [11], [12], timelines [12], streaklines [12], particle tracing [12], [13], [14], [15], surface particles [16], stream ribbons [8], stream polygons [17], stream surfaces [18], [19], [20], stream arrows [21], [22], stream tubes [8], stream balls [23], flow volumes [24], [25], and topological analysis [26], [27], [28], [29] tend to result in an incomplete view or a cluttered image of the flow unless an effective seeding strategy is adopted. Van Wijk presented a texture synthesis technique called Spot Noise [30], [31], [32] that visualizes flow data by stretching in the flow direction a collection of oval texture splats placed within the field. Later Cabral and Leedom [33] proposed LIC (Line Integral Convolution) that convolves an input noise texture using a low-pass filter along pixel-centered symmetrically bi-directional streamlines to exploit spatial correlation in the flow direction. LIC synthesizes an image that provides a global dense representation of the flow, analogous to the resulting pattern of wind-blown sand. There have been many optimizations of and extensions to LIC such as fast LIC [34], parallel LIC [35], LIC on curvilinear grids [36], LIC on triangulated surfaces [37], multi-frequency LIC [38], oriented LIC [39], enhanced LIC [40], dyed LIC [41], volume LIC [42], [43], and HyperLIC [44].

Heidrich et al. [45] incorporated indirect pixel texture addressing and additive/subtractive texture blending to accelerate streamline integration and texture convolution in LIC. Preuber and Rumpf [46] adopted another texture-based method, anisotropic nonlinear diffusion, to low-pass filter a noise texture along streamlines, but enhance edges in the orthogonal flow direction. Later Burkle et al. [47] adapted this approach with texture transport for unsteady flows. Max and Becker [48] applied texture mapping in either forward mesh warping or backward texture coordinates advection for time-dependent flow visualization. Forssell and Cohen [36] used pathlines as convolution paths in LIC to visualize unsteady flow fields. Verma et al. [49] presented PLIC (Pseudo LIC) in which pre-synthesized template textures are mapped on sparsely placed pathline ribbons to emulate a dense representation of time-dependent flows.

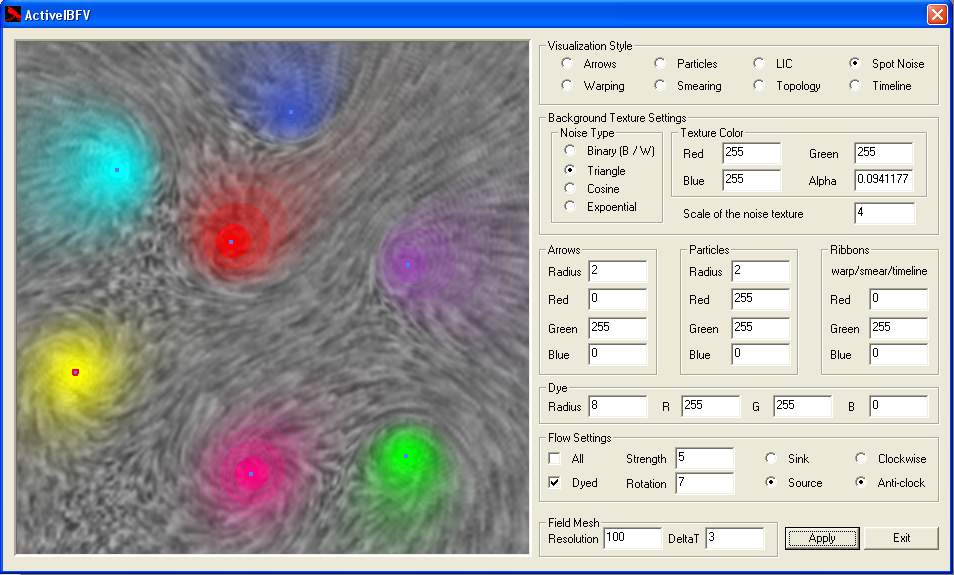

Some methods take advantage of hardware capabilities to achieve high performance visualization. Jobard et al. [50], [51] designed an efficient rendering pipeline based on indirect pixel texture addressing [45] for fast texture/dye advection and feature extraction. Weiskopf et al. [52] exploited the pixel texture unit to visualize time-varying 3D vector fields. Van Wijk proposed IBFV (Image Based Flow Visualization) [53] in which a sequence of temporally-spatially low-pass filtered noise textures are advected via forward texture mapping on warped meshes in combination with the blending of successive frames. This easy-to-implement, efficient, versatile method can emulate a wide range of techniques such as particles, arrow plots, streamlines, timelines, spot noise, LIC, and topological analysis at high frame rates using basic hardware features. IBFV was then used to visualize flow on 3D curved surfaces and enhance surface shape cueing by means of flow-aligned textures [54]. IBFV was even extended to 3D flows by decomposing the 3D advection to planar and longitudinal advections [55]. Jobard et al. presented LEA [56] to visualize unsteady flow fields also at high frame rates despite its independence of hardware acceleration [57]. To compute each pixel value of a frame, backward integration is used to retrieve at the last time step the contributing particle's footprint into which the iteratively advected texture, with noise injected at in-flow areas, is indexed for the contributed texture value. Successive textures are blended to create temporal coherence along pathlines in the flow evolution and short-length directional low-pass filtering is performed to improve spatial coherence along streamlines in an image. Visually pleasing effects can be obtained when arbitrarily shaped field domains are addressed using contextual masking. Recently Laramee et al. [58] presented a novel method based on IBFV and LEA for a direct dense representation of unsteady flow on arbitrary triangular surfaces to address large, unstructured, dynamic meshes by projecting the surface geometry to image space to which backward mesh advection and successive texture blending are applied. Weiskopf et al. proposed UFAC [59], which, based on a generic spacetime-coherent framework, establishes temporal coherence by property advection along pathlines while building spatial correlation by texture convolution along instantaneous streamlines.

A well-known hardware-independent algorithm is UFLIC (Unsteady Flow LIC) proposed earlier by Shen and Kao [60]. UFLIC uses a time-accurate value scattering scheme and a successive texture feed-forward strategy to achieve very high temporal and spatial coherence. At each time step a value scattering process occurs for which a seed is placed in each pixel. For this seed a pathline is integrated along which the seed's texture value is scattered to the downstream pixels over several time steps. The values received by each pixel at a time step are accumulated and convolved to synthesize the corresponding frame. To address the low performance of UFLIC, Liu and Moorhead presented AUFLIC (Accelerated UFLIC) [61] based on their earilier work [62]. AUFLIC is an order-of-magnitude faster than UFLIC and achieves interactive unsteady flow visualization by reusing pathlines in the time-consuming value scattering process. AUFLIC can be easily extended to time-varying volume flows --- VAUFLIC [63], [64].

As a geometry-based method, streamlines remain one of the most important approaches to flow visualization for the straightforward direction cueing and the low computational expense. Furthermore, a placement of evenly spaced streamlines [65], [66], [67] may provide an aesthetic and informative pattern, without either incompleteness or cluttering, to facilitate mental reconstruction of the flow. The sparseness makes evenly spaced streamlines, particularly coupled with curve illumination, a promising solution for visualizing planar flows, curved surface flows, and volume flows.



REFERENCES

[ 1] Robert S. Laramee, Helwig Hauser, Helmut Doleisch, Benjamin Vrolijk, Frits H. Post, and Daniel Weiskopf, "The State of the Art in Flow Visualization: Dense and Texture-based Techniques," Computer Graphics Forum, Vol. 23, No. 2, 2004.

[ 2] Victor R. Klassen and Steven J. Harrington, "Shadowed Hedgehogs: A Technique for Visualizing 2D Slices of 3D Vector Fields," Proceedings of IEEE Visualization 91, Oct 22-25, San Diego, California, pp. 148-153, 1991.

[ 3] David N. Kenwright and Gordon D. Mallinson, "A 3-D Srteamline Tracking Algorithm Using Dual Stream Functions," Proceedings of IEEE Visualization 92, Oct 19-23, Boston, Massachusetts, pp. 62-68, 1992.

[ 4] Greg Turk and David Banks, "Image-Guided Streamline Placement," Proceedings of ACM SigGraph 96, Aug 4-9, New Orleans, Louisana, pp. 453-459, 1996.

[ 5] Bruno Jobard and Wilfrid, "Creating Evenly-Spaced Streamlines of Arbitrary Density," Proceedings of 8th EuroGraphics Workshop in Scientific Computing, April, Boulogne Sur Mer, France, pp. 45-55, 1997.

[ 6] Detlev Stalling, Malte Zockler, and Hans-Christian Hege, "Fast Display of Illuminated Field Lines," IEEE Transactions on Visualization and Computer Graphics, Vol. 3, No. 2, April-June, pp. 118-128, 1997.

[ 7] Vivek Verma, David Kao, and Alex Pang, "A Flow-Guided Streamline Seeding Strategy," Proceedings of IEEE Visualization 00, Oct 8-13, Salt Lake City, Utah, pp. 163-170, 2000.

[ 8] Shyh-Kuang Ueng, Christopher Sikorski, and Kuan-Liu Ma, "Efficient Streamline, Streamribbon, and Streamtube Constructions on Unstructured Grids," IEEE Transactions on Visualization and Computer Graphics, Vol. 2, No. 2, June, pp. 100-110, 1996.

[ 9] Pieter G. Buning, "Numerical Algorithms in CFD Post-Processing," Von Karman Institute for Fluid Dynamics Lecture Series #10, Computer Graphics and Flow Visualization in Computational Fluid Dynamics, Sept 25-29, Brussels, Belgium, 1989.

[10] David A. Lane, "Visualization of Time-Dependent Flow Fields," Proceedings of IEEE Visualization 93, Oct 25-29, San Jose, California, pp. 32-38, 1993.

[11] David A. Lane, "Scientific Visualization of Large-Scale Unsteady Fluid Flows," Scientific Visualization, Gregory M. Nielson, Hans Hagen, and Heinrich Muller (Editors), IEEE Computer Society, Los Alamitos, CA, pp. 125-145, 1997.

[12] David A. Lane, "UFAT - A Particle Tracer for Time-Dependent Flow Fields," Proceedings of IEEE Visualization 94, Oct 17-21, Washington, DC, pp. 257-264, 1994.

[13] Andrea J. S. Hin and Frits H. Post, "Visualization of Turbulent Flow with Particles," Proceedings of IEEE Visualization 93, Oct 25-29, San Jose, California, pp. 46-52, 1993.

[14] David N. Kenwright and David A, "Lane. Interactive Time-Dependent Particle Tracing Using Tetrahedral Decomposition," IEEE Transactions on Visualization and Computer Graphics, Vol. 2, No. 2, June, pp. 120-129, 1996.

[15] Ralph Bruckschen, Falko Kuester, Bernd Hamann, and Kenneth I. Joy, "Real-time Out-Of-Core Visualization of Particle Traces," IEEE Symposium on Parallel and Large-scale visualization and Graphics 01, Oct 22-23, San Diego, California, pp. 45-50, 2001.

[16] Jarke J. Van Wijk, "Rendering Surface-particles," Proceedings of IEEE Visualization 92, Oct 19-23, Boston, Massachusetts, pp. 54-61, 1992.

[17] W. J. Schroeder, C. R. Volpe, and W. E. Lorensen, "The Stream Polygon: A Technique for 3D Vector Field Visualization," Proceedings of IEEE Visualization 91, Oct 22-25, San Diego, California, pp. 126-132, 1991.

[18] J. P. M. Hultquist, "Constructing Stream Surfaces in Steady 3D Vector Fields," Proceedings of IEEE Visualization 92, Oct 19-23, Boston, Massachusetts, pp. 171-178, 1992.

[19] Jarke J. Van Wijk, "Implicit Stream Surfaces," Proceedings of IEEE Visualization 93, Oct 25-29, San Jose, California, pp. 245-252, 1993.

[20] Gerik Scheuermann, Tom Bobach, Hans Hagen, Karim Mahrous, Bernd Hamann, Kennenth I. Joy, and Wolfgang Kollmann, "A Tetrahedra-Based Stream Surface Algorithm," Proceedings of IEEE Visualization 01, Oct 21-26, San Diego, California, pp. 151-158, 2001.

[21] Helwig Loffelmann, Lukas Mroz, Eduard Groller, and Werner Purgathofer, "Stream Arrows: Enhancing The Use of Stream Surfaces for The Visualization of Dynamical Systems," The Visual Computer, Vol. 13, No. 8, pp. 359-369, 1997.

[22] Helwig Loffelmann, Lukas Mroz, and Eduard Groller, "Hierarchical Streamarrows for the Visualization of Dynamical Systems," Proceedings of the 8th EuroGraphics Workshop on Visualization in Scientific Computing, pp. 203-211, 1997.

[23] Manfred Brill, Hans Hagen, Wladimir Djatschin, and Stanislav V. Klimenko, "Streamball Techniques for Flow Visualization," Proceedings of IEEE Visualization 94, Oct 17-21, Washington, DC, pp. 225-231, 1994.

[24] Nelson Max, Barry Becker, and Roger Crawfis, "Flow Volumes for Interactive Vector Field Visualization," Proceedings of IEEE Visualization 93, Oct 25-29, San Jose, California, pp. 19-24, 1993.

[25] Barry G. Becker, David A. Lane, and Nelson L. Max, "Unsteady Flow Volumes," Proceedings of IEEE Visualization 95, Oct 29-Nov 3, Atlanta, Georgia, pp. 329-335, 1995.

[26] James L. Helman and Lambertus Hesselink, "Representation and Display of Vector Field Topology in Fluid Flow Data Sets," IEEE Computer, Vol. 22, No. 8, Aug, pp.27-36, 1989.

[27] James. L. Helman and Lambertus Hesselink, "Surface Representation of Two- and Three-Dimensional Fluid Flow Topology," Proceedings of IEEE Visualization 90, Oct 23-26, San Francisco, California, pp. 6-13, 1990.

[28] A. Globus, C. Levit, and T. Lasinski, "A Tool for Visualizing the Topology of Three-Dimensional Vector Fields," Proceedings of IEEE Visualization 91, Oct 22-25, San Diego, California, pp. 33-40, 1991.

[29] James L. Helman and Lambertus Hesselink, "Visualizing vector field topology in fluid flows," IEEE Computer Graphics and Applications, Vol. 11, No. 3, May, pp. 36-46, 1991.

[30] Jarke J. van Wijk, "Spot Noise: Texture Synthesis for Data Visualization," Computer Graphics, Vol. 25, No. 4, pp. 309-318, July 1991.

[31] Willem C. deLeeuw and Jarke J. J. van Wijk, "Enhanced Spot Noise for Vector Field Visualization," Proceedings of IEEE Visualization 95, Oct 29-Nov 3, Atlanta, Georgia, pp. 233-239, 1995.

[32] Willem C. deLeeuw and Robert Van Liere, "Comparing LIC and Spot Noise," Proceedings of IEEE Visualization 98, Oct 18-23, Research Triangle Park, North Carolina, pp. 359-365, 1998.

[33] Brian Cabral and Leith (Casey) Leedom, "Imaging Vector Fields Using Line Integral Convolution," Proceedings of ACM SigGraph 93, Aug 2-6, Anaheim, California, pp. 263-270, 1993.

[34] Detlev Stalling and Hans-Christian Hege, "Fast and Resolution Independent Line Integral Convolution," Proceedings of ACM SigGraph 95, Aug 6-11, Los Angeles, California, pp. 249-256, 1995.

[35] Detlev Stalling, M. Zockler, and Hans-Christian Hege, "Parallel Line Integral Convolution," Proceedings of the First Eurographics Workshop on Parallel Graphics and Visualization, Sept 26-27, Bristol, U.K., pp. 111-128, 1996.

[36] Lisa K. Forssell and S. D. Cohen, "Using Line Integral Convolution for Flow Visualization: Curvilinear Grids, Variable-Speed Animation, and Unsteady Flows," IEEE Transactions on Visualization and Computer Graphics, Vol. 1, No. 2, pp. 133-141, June 1995.

[37] Christian Teitzel, Robert Grosso, and Thomas Ertl, "Line Integral Convolution on Triangulated Surfaces," Proceedings of the Fifth International Conference in Central Europe on Computer Graphics and Visualization (WSCG97), Feb 10-14, Plzen-Bory, Czech Republic, pp. 572-581, 1997.

[38] Ming-Hoe Kiu and David C. Banks, "Multi-Frequency Noise for LIC," Proceedings of IEEE Visualization 96, Oct 27-Nov 1, San Francisco, California, pp. 121-126, 1996.

[39] R. Wegenkittl, E. Groller, and W. Purgathofer, "Animating Flow Fields: Rendering of Oriented Line Integral Convolution," Proceedings of Computer Animation 97, June 5-6, Geneva, Switzerland, pp. 15-21, 1997.

[40] A. Okada and D. L. Kao, "Enhanced Line Integral Convolution with Flow Feature Detection," Proceedings of IS & T / SPIE Electronics Imaging 97, Feb 8-14, San Jose, California, Vol. 3017, pp. 206-217, 1997.

[41] Han-Wei Shen, C. Johnson, and Kwan-Liu Ma, "Visualizing Vector Fields using Line Integral Convolution and Dye Advection," Proceedings of IEEE Symposium on Volume Visualization 96, Oct 28-29, San Francisco, California, pp. 63-70, 1996.

[42] Victoria Interrante and Chester Grosch, "Strategies for Effectively Visualizing 3D Flow with Volume LIC," Proceedings of IEEE Visualization 97. Oct 19-24, Phoenix, Arizona, pp. 421-424, 1997.

[43] C. Rezk-Salama, P. Hastreiter, C. Teitzel, and T. Ertl, "Interactive Exploration of Volume Line Integral Convolution Based on 3D-Texture Mapping," Proceedings of IEEE Visualization 99, Oct 24-29, San Francisco, California, pp. 233-240, 1999.

[44] XiaoQiang Zheng and Alex Pang, "HyperLIC," Proceedings of IEEE Visualization 03, Oct 19-24, Seattle, Washington, pp. 249-256, 2003.

[45] Wolfgang Heidrich, Rudiger Westermann, Hans-Peter Seidel, and Thomas Ertl, "Applications of Pixel Textures in Visualization and Realistic Image Synthesis," Proceedings of ACM Symposium on Interactive 3D Graphics, April 26-28, Atlanta, Georgia, pp. 127-134, 1999.

[46] T. Preuber and M. Rumpf, "Anisotropic Nonlinear Diffusion in Flow Visualization," Proceedings of IEEE Visualization 99, Oct 24-29, San Francisco, California, pp. 325-332, 1999.

[47] D. Burkle, T. Preuber, and M. Rumpf, "Transport and Anisotropic Diffusion in Time-Dependent Flow Visualization," Proceedings of IEEE Visualization 01, Oct 21-26, San Diego, California, pp. 61-67, 2001.

[48] Nelson Max and Barry Becker, "Flow Visualization Using Moving Textures," Data Visualization Techniques, Chandrajit Bajaj (Editor), John Wiley and Sons Ltd., pp. 99-105, 1999.

[49] Vivek Verma, David Kao, and Alex Pang, "PLIC: Bridging the Gap Between Streamlines and LIC," Proceedings of IEEE Visualization 99, Oct 24-29, San Francisco, California, pp. 341-348, 1999.

[50] Bruno Jobard, Gordon Erlebacher, and M. Yousuff Hussaini, "Hardware-Assisted Texture Advection for Unsteady Flow Visualization," Proceedings of IEEE Visualization 00, Oct 8-13, Salt Lake City, Utah, pp. 155-162, 2000.

[51] Bruno Jobard, Gordon Erlebacher, and M. Yousuff Hussaini, "Tiled Hardware-Accelerated Texture Advection for Unsteady Flow Visualization," Proceedings of the 10th International Conference on Computer Graphics & Vision (Graphicon 2000), Aug 28-Sept 2, Moscow, Russia, pp. 189-196, 2000.

[52] Daniel Weiskopf, Matthias Hopf, and Thomas Ertl, "Hardware-Accelerated Visualization of Time-Varying 2D and 3D Vector Fields by Texture Advection via Programmable Per-pixel Operations," Proceedings of the 6th International Fall Workshop on Vision, Modeling, and Visualization (VMV 2001), Nov 21-23, Stuttgart, Germany, pp. 439-446, 2001.

[53] Jarke J. van Wijk, "Image Based Flow Visualization," Proceedings of ACM SigGraph 02, July 21-26, San Antonio, Texas, pp. 745-754, 2002.

[54] Jarke J. van Wijk, "Image Based Flow Visualization for Curved Surfaces," Proceedings of IEEE Visualization 03, Oct 19-24, Seattle, Washington, pp. 123-130, 2003.

[55] Alexandru Telea and Jarke J. van Wijk, "3D IBFV: Hardware-Accelerated 3D Flow Visualization," Proceedings of IEEE Visualization 03, Oct 19-24, Seattle, Washington, pp. 233-240, 2003.

[56] Bruno Jobard, Gordon Erlebacher, and M. Yousuff Hussaini, "Lagrangian-Eulerian Advection of Noise and Dye Textures for Unsteady Flow Visualization," IEEE Transactions on Visualization and Computer Graphics, Vol. 8, No. 3, pp. 211-222, July-September 2002.

[57] Daniel Weiskopf, Gordon Erlebacher, Matthias Hopf, and Thomas Ertl, "Hardware-Accelerated Lagrangian-Eulerian Texture Advection for 2D Flow Visualization," Proceedings of the 7th International Fall Workshop on Vision, Modeling, and Visualization (VMV 2002), Nov 20-22, Erlangen, Germany, pp. 77-84, 2002.

[58] Robert S. Laramee, Bruno Jobard, and Helwig Hauser, "Image Space Based Visualization of Unsteady Flow on Surfaces," Proceedings of IEEE Visualization 03, Oct 19-24, Seattle, Washington, pp. 131-138, 2003.

[59] Daniel Weiskopf, Gordon Erlebacher, and Thomas Ertl, "A Texture-Based Framework for Spacetime-Coherent Visualization of Time-Dependent Vector Fields," Proceedings of IEEE Visualization 03, Oct 19-24, Seattle, Washington, pp. 107-114, 2003.

[60] Han-Wei Shen and David L. Kao, "A New Line Integral Convolution Algorithm for Visualizing Time-Varying Flow Fields," IEEE Transactions on Visualization and Computer Graphics, Vol. 4, No. 2, pp. 98-108, April-June 1998.

[61] Zhanping Liu and Robert J. Moorhead II, "Accelerated Unsteady Flow Line Integral Convolution (AUFLIC version 2.0)," IEEE Transactions on Visualization and Computer Graphics, Vol. 11, No. 2, pp. 113-125, 2005.

[62] Zhanping Liu and Robert J. Moorhead II, "AUFLIC: An Accelerated Algorithm for Unsteady Flow Line Integral Convolution (AUFLIC version 1.0)," Proceedings of EuroGraphics / IEEE VGTC Symposium on Visualization (VisSym 02, now EuroVis), May 27-29, Barcelona, Spain, pp. 43-52, 2002.

[63] Zhanping Liu and Robert J. Moorhead II, "Visualizing Time-Varying Three-Dimensional Flow Fields Using Accelerated UFLIC," The 11th International Symposium on Flow Visualization, Aug 9-12, Notre Dame, Indiana, pp. 1-10, 2004.

[64] Zhanping Liu and Robert J. Moorhead II, "A Texture-Based Hardware-Independent Technique for Time-Varying Volume Flow Visualization," Journal of Visualization, Vol. 8, No. 3, pp. 235~244, 2005.

[65] Zhanping Liu, Robert J. Moorhead II, and Joe Groner, "An Advanced Evenly Spaced Streamline Placement Algorithm," IEEE Transactions on Visualization and Computer Graphics, Vol. 12, No. 5 (Special Issue on IEEE Vis'06), pp. 965-972, 2006.

[66] Zhanping Liu and Robert J. Moorhead II, "Robust Loop Detection for Interactively Placing Evenly Spaced Streamlines," IEEE Computing in Science and Engineering, Vol. 9, No. 4, 2007. pp. 86~91.

[67] Zhanping Liu and Robert J. Moorhead II, "Interactive View-Driven Evenly Spaced Streamline Placement," Proceedings of IS & T / SPIE Conference on Visualization and Data Analysis (VDA'08), Jan 27-31, San Jose, CA, 2008. 68090A pp. 1~12.
