An OLIC (Oriented LIC) [39] image can be produced by using a sparse noise texture in combination with a ramp kernel to show both flow direction and flow orientation (positive direction) (Figure 1). An enhanced LIC [40] image (Figure 2) is generated by iteratively taking an output LIC image as the input for the next LIC cycle, followed by a final high-pass filtering process. In fact, the visual style may be altered when a sparse noise texture is employed in enhanced LIC.

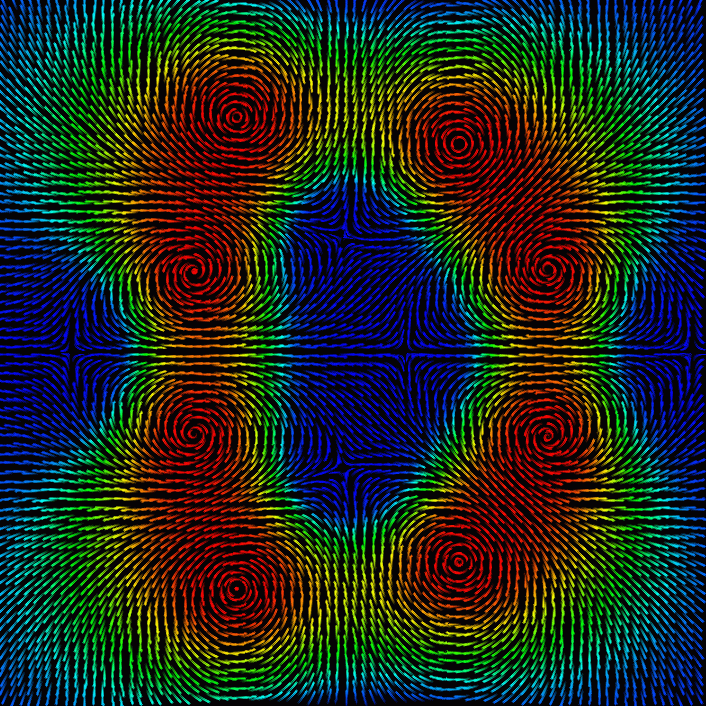

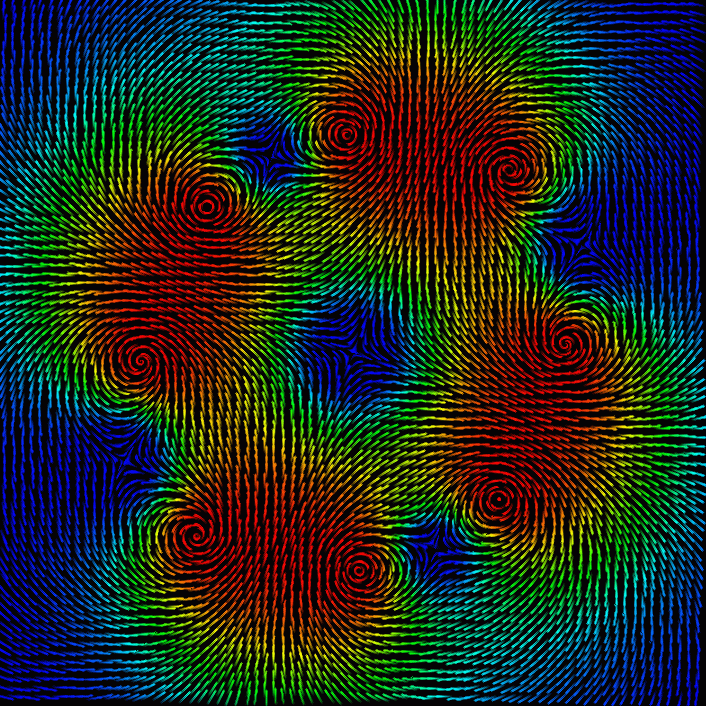

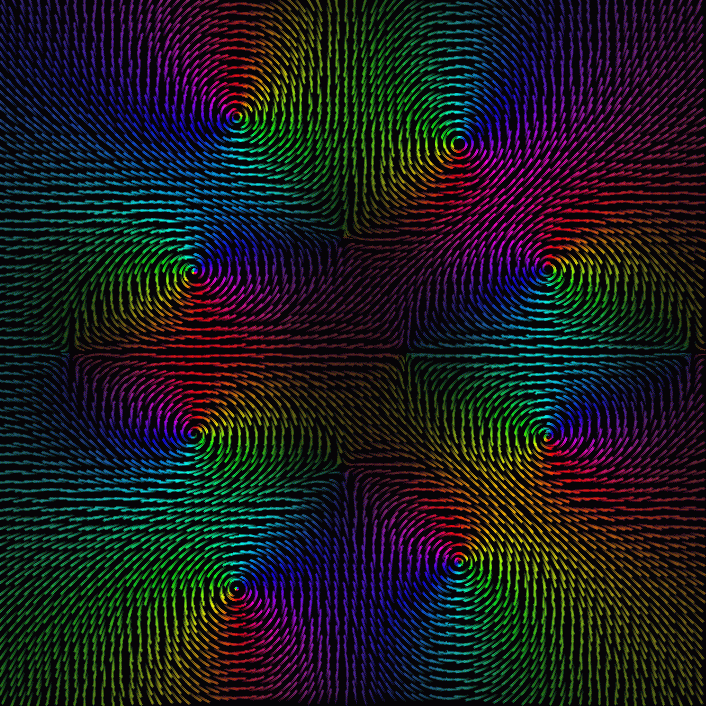

Figure 1. OLIC images.

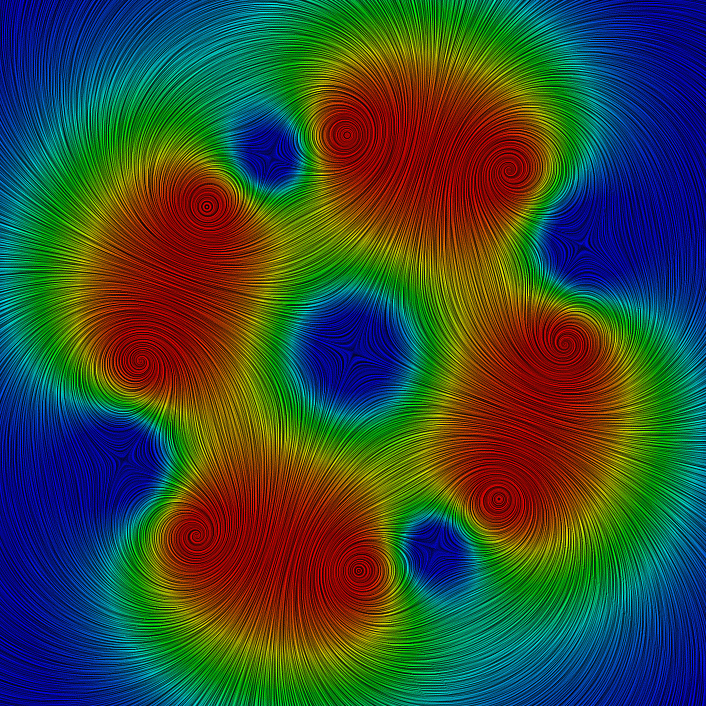

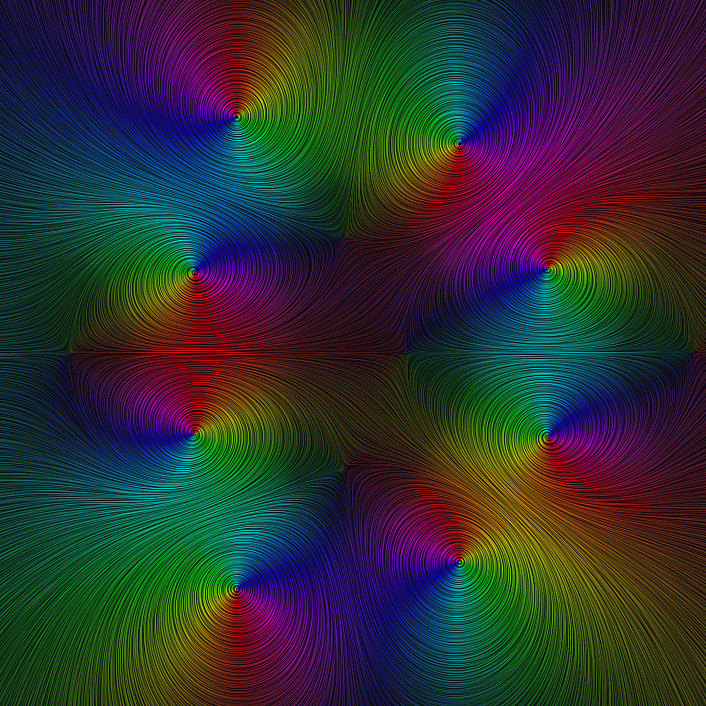

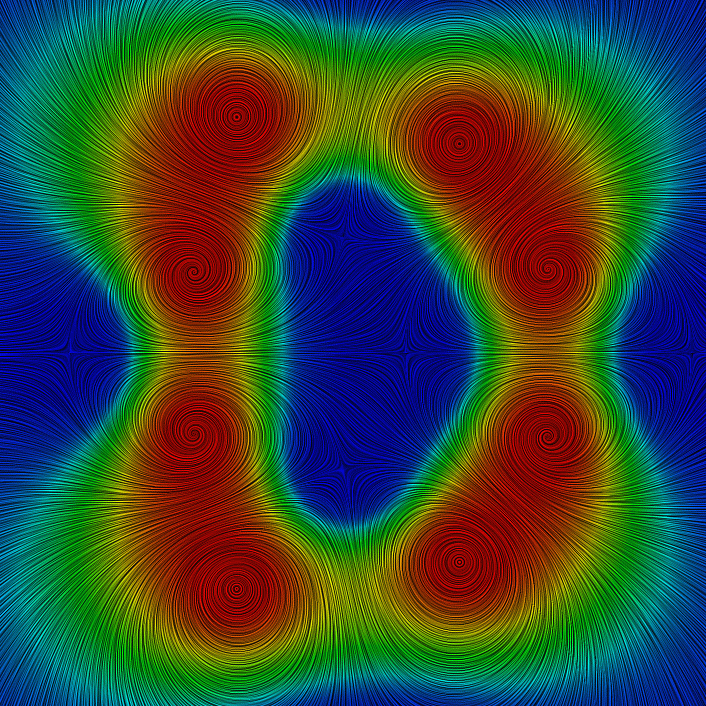

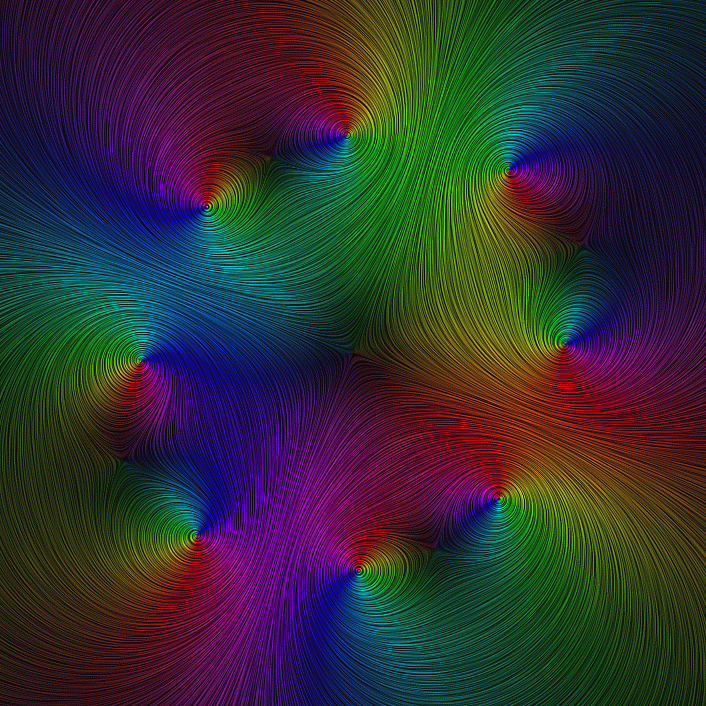

Figure 2. Enhanced LIC images (white noise as the input).

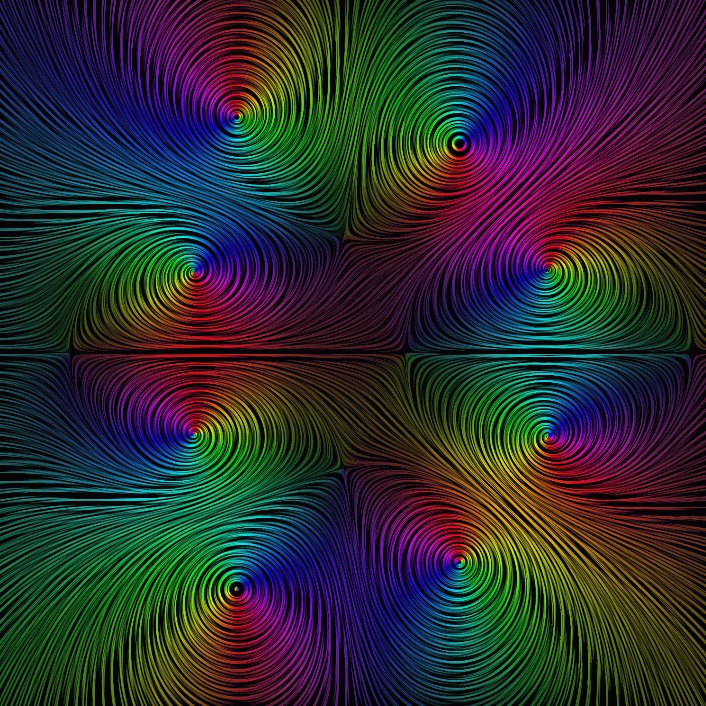

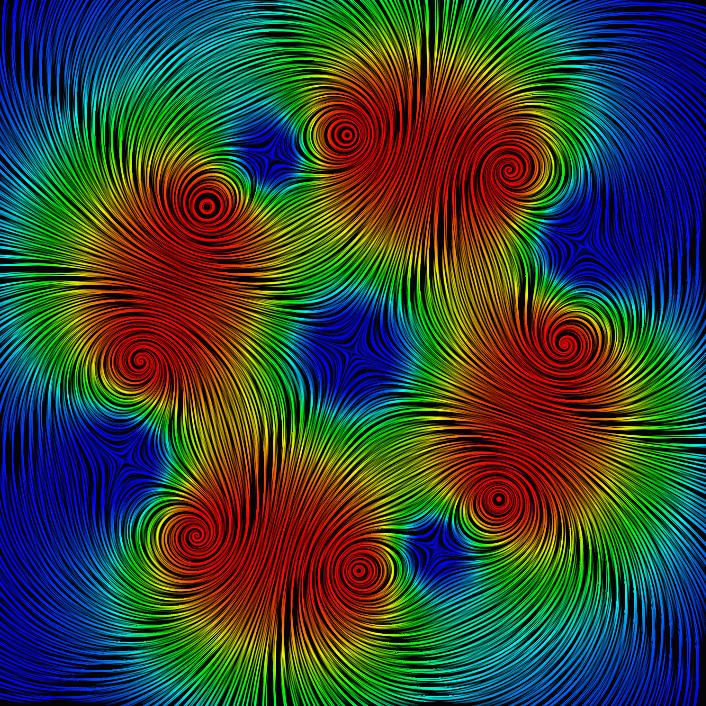

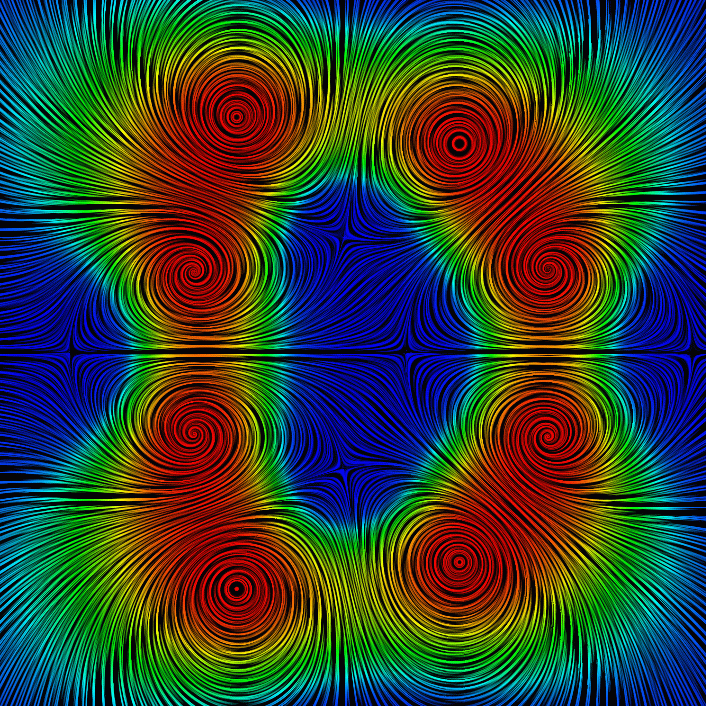

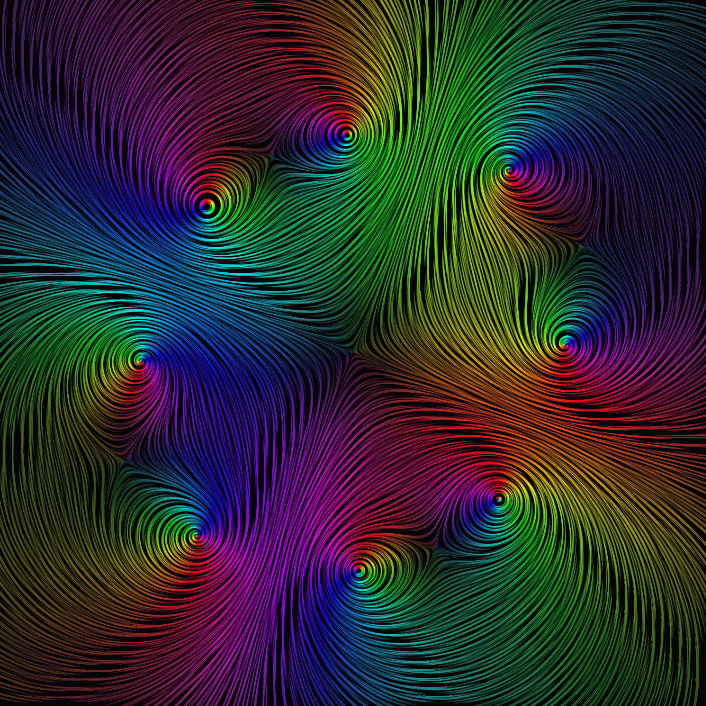

Figure 3. Enhanced LIC images (sparse noise as the input).
